Description

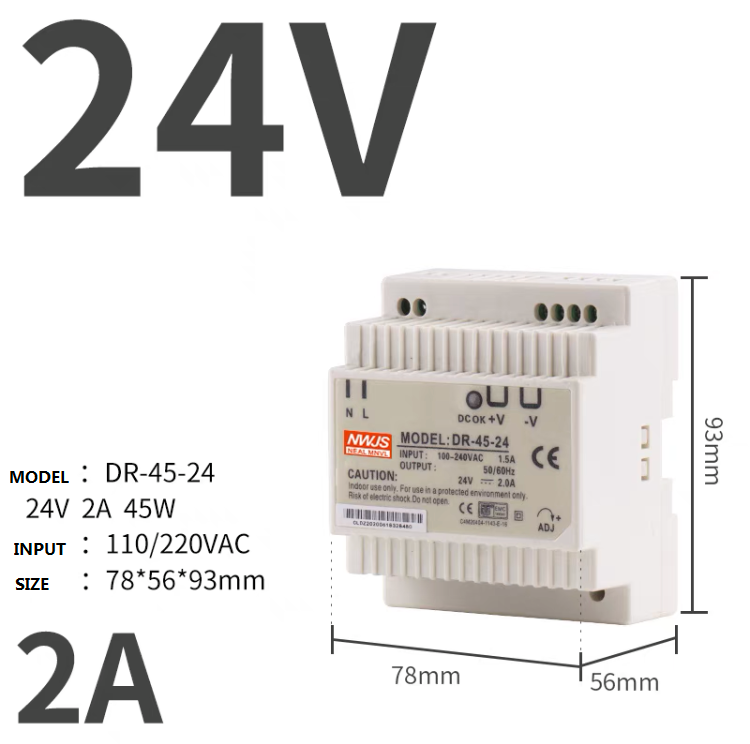

DR-45-24 MEANWELL DR DIN RAIL PANEL MOUNT POWER SUPPLY 24V DC OUTPUT VOLTAGE 2A OUTPUT

MODEL:DR-45-24
AC or DC Input Voltage Ac
AC or DC Output Voltage Dc
Input Voltage 85 → 264V ac
Output Voltage 24 V dc
Output Current 2 A
Power Rating 45W
Number of Outputs 1
Electrical Phase 1
Type Switch Mode
Height 78mm
Width 93mm
Standards Met RoHS Compliant, TUV EN 60950-1, UL 508
Mounting Type DIN Rail Mount
Ripple And Noise 480mV Pk-Pk
Output Voltage Adjustment Range 21.6 → 26.4V
Maximum Temperature +50°C
Series DR
Load Regulation ±1%
Special Features Overvoltage and Short Circuit Protection
MTBF 364600h
Depth 67mm
Minimum Temperature -10°C
